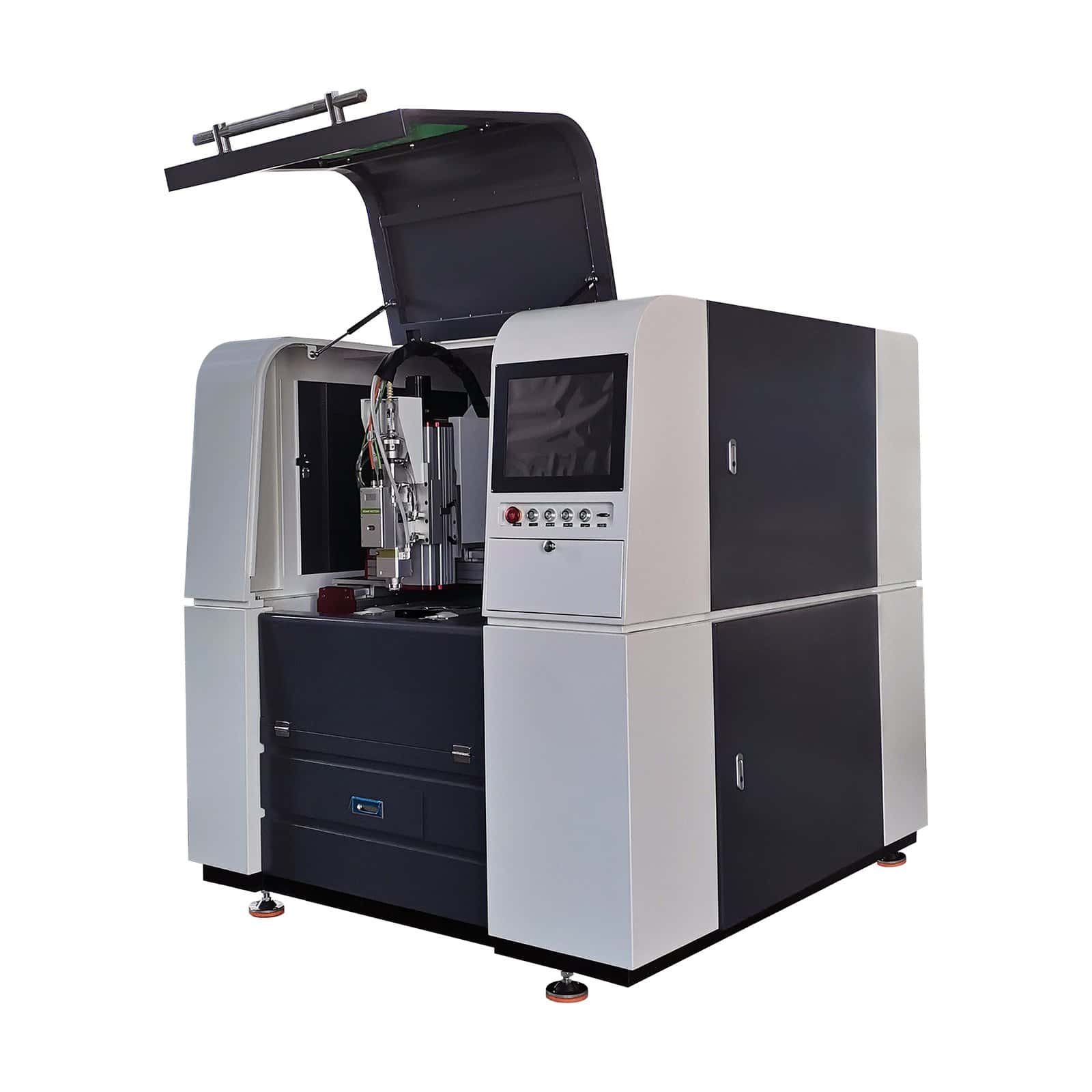

1390 CNC Metal Laser Cutting Machine Introduction
Are you looking for a small laser cutting machine? Please explore the cheap DG-1390F CNC metal laser cutting machine offered by DAG. It adopts the most advanced fibre laser, self-designed CNC machine tools and high-strength welded fuselage. It is precisely processed by a large CNC milling machine with high-temperature annealing. It is imported with high precision, fast speed, linear guide transmission, good rigidity and high stability. Aluminium alloy beams have an advanced heat treatment process, high strength, and are lightweight and suitable for rigidity.
Fibre lasers have many advantages, such as high beam quality, high brightness, high conversion rate, maintenance-free, stable and reliable operation, low cost, and small size. Laser power 500-2000w (optional) is used for cutting 0.5-9mm carbon steel plate, 0.5-6mm stainless steel plate, galvanized plate, electrolytic plate, 0.5-3mm aluminium alloy, 0.5-3mm brass and copper, and other non-ferrous metal materials.
Technical Parameters
| Working area | 1300*900mm (optional 4020 6020 etc.) | Fiber laser power | Optional:1000W/1500W/2000W |
| Max cutting speed | 0-25m/min | Repeat positioning accuracy | 0.02mm |
| Total electric power | <13kw | power supply | 220v/50Hz/60Hz |
| Environment temperature | 0-35℃ | Continuous working time | 24 hours |
| Weight of the machine | 1500kg | Natural life of laser | 100000hours |
| Laser wavelength | 10.6um | Cooling System | Water cooling |
| Graphic Format Supported | AI, PLT, BMP, Dst, IGES | Control Software | Cypcut |
| Laser Source Brand | MAX/RAYCUS/JPT(optional) | Machinery Test Report | Provided |
| Warranty of core components | 3 years | Mode of Operation | continuous wave |
| Max running speed | 40m/min | After-sale service | Support |
1390 CNC Metal Laser Cutting Machine Analysis
Cutting Data
Single module 1.5kW fiber core 50μm cutting data (collimation 100, aggregation 125)
| Material | thickness(mm) | speed(m/min) | Power（W） | Gas | Air pressure(bar) | nozzle(mm) | Cutting height(mm) |
| Stainless steel | 1 | 25 | 1500 | N2 | 12 | 1.5S | 0.5 |
| 2 | 8 | 14 | 2.0S | 0.5 | |||
| 3 | 4.5 | 16 | 2.5S | 0.5 | |||
| 4.5 | 1.5 | 18 | 3.0S | 0.5 | |||
| 5.5 | 0.8 | 18 | 3.0S | 0.5 | |||
| carbon steel | 1 | 22 | 1500 | N2 | 12 | 1.5S | 0.5 |
| 3 | 3.6 | O2 | 0.6 | 1.0D | 1 | ||
| 6 | 1.4 | 0.6 | 1.5D | 1 | |||
| 8 | 1.2 | 0.6 | 1.5D | 1 | |||
| 10 | 1 | 0.6 | 2.0D | 1 | |||
| 12 | 0.8 | 0.6 | 2.5D | 1 | |||
| 14 | 0.65 | 0.6 | 3.0D | 1 | |||
| 16 | 0.5 | 0.6 | 3.0D | 1 | |||
| Aluminum | 1 | 18 | 1500 | N2 | 12 | 1.5S | 0.5 |
| 2 | 6 | 14 | 2.0S | 0.5 | |||
| 3 | 2.5 | 15 | 2.5S | 0.5 | |||
| 4 | 0.8 | 17 | 3.0S | 0.5 | |||
| Brass | 1 | 15 | 1500 | N2 | 14 | 1.5S | 0.5 |
| 2 | 5 | 16 | 2.0S | 0.5 | |||
| 3 | 1.8 | 18 | 2.5S | 0.5 | |||
| 4 | 1 | 20 | 3.0S | 0.5 |
★★★ Remarks: The parameters in the table are proofing parameters, which are greatly affected by various factors in actual processing, so actual production and processing are not recommended.

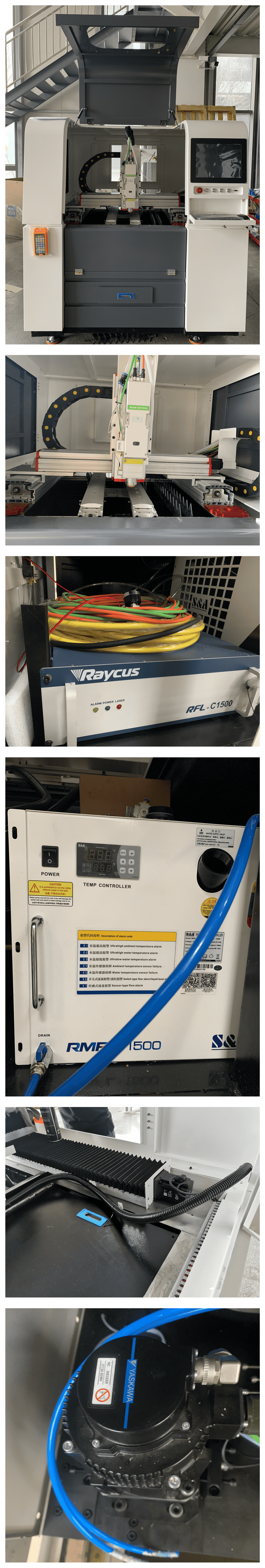

Details
1390 CNC Metal Laser Cutting Machine Advantages
Good dynamic performance, compact machine structure, sufficient rigidity, good reliability, and efficient cutting performance. The overall layout is compact and reasonable, and the floor space is small. Since the floor area is about 1300*900mm, this DG-1390F precision CNC laser cutter for metal jewelry is very suitable for small hardware processing factories. What’s more, compared with the traditional bed, its high cutting efficiency has been increased by 30%, which is suitable for cutting various metal materials.
1. Fine cutting, up to 0.05-0.1mm. Use appropriate auxiliary gas to smooth and flatten the cut without secondary polishing.
2. The cutting head automatically focuses, using imported high-precision capacitive sensors. It dynamically tracks the plate height, automatically adjusts the cutting height to prevent a collision, and can cut uneven plates.
3. The DG-1390F precision metal jewelry imported servo motors and high-precision linear modules drive the CNC laser cutting machine. It has fast speed and precision of up to 0.01mm and a long service life.
4. Advanced fiber lasers are used, and core components are imported. They are high—stability, long-lived, require no consumables, and are maintenance-free.
5. A professionally designed gold powder recovery device collects all dust. This minimizes losses.
6. Professionally customized laser cutting system for the gold and silver jewellery industry, with path optimization, cutting starting point optimization, multi-layer and layout functions, and saving time and materials.
7. Its small size, low energy consumption, few consumables, and easy maintenance make it ideal for cutting with compressed air at a low cost.

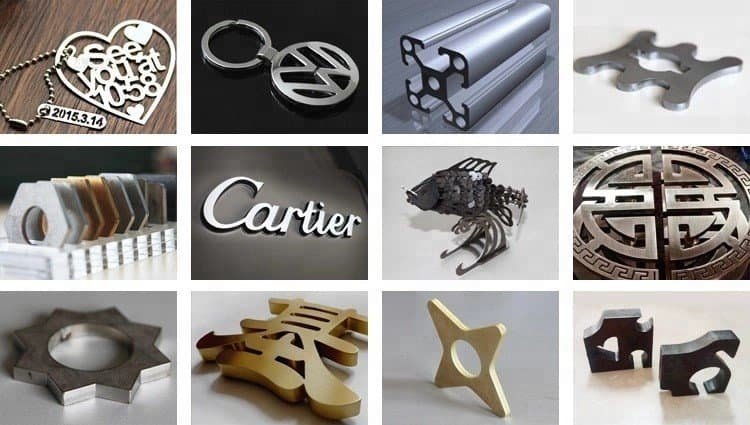

Cutting Samples
They are widely used in metal products, hardware, precision machinery, auto parts, glasses, jewellery, nameplates, electronics, toys, advertising and other industries.
DAG At Your Service
Pre-Sales Service
• Free sample cutting service:
For free sample cutting/testing, please send us your CAD file (PLT, AI) or mail us your workpiece; we will cut it in the factory and make a video to show you the cutting process and results or send you a sample to check the cutting quality.
• Drive solution design:
According to the customer’s product processing requirements, we can design a unique solution for customers to support higher manufacturing efficiency and better processing quality.
• Customized machine design:
We can modify our machines according to the customer’s application to achieve customer convenience and high production efficiency.
After-Sales Service
• As a professional CNC laser manufacturer and supplier, DAG will provide English training videos and user manuals for fiber laser machine installation, operation, maintenance and troubleshooting, and provide you with English training videos and user manuals by email, phone, mobile phone, etc. when you encounter installation, operation or adjustment problems.
• You can come to our factory for training. We will provide professional guidance and direct face-to-face practical training. We have assembly equipment, various tools and testing equipment here. Training time: 3~5 days (recommended).
• Our engineers will visit your local site for on-site guidance and training services. We must assist with visa processing and prepay travel and accommodation expenses before deployment and during service.
Warranty
• Three-year warranty for the whole machine, 18-month warranty for the laser, 12-month warranty for the chiller, and no warranty for the lens/mirror/nozzle.
• Long-term lifetime maintenance: The after-sales department will provide 24/7 English online support.
• We are responsible for providing free accessories during the warranty period, except for artificial damage.
• After the warranty period, the buyer is only responsible for the actual repair costs.
Frequently Asked Questions
If you need a free quote and detailed solution, please answer the following questions and let us know by email so that we can recommend the most suitable machine and quote you an affordable price.
• Do you need to cut metal plates, tubes, or both?
• If you need to cut tubes, what is the length, diameter, and maximum thickness of your tubes?
• What is the maximum working area required for cutting metal plates?
• How much do you plan to budget for customizing the machine?
• What will the processed material be used for (applicant)
• Which seaport is closest to you?
• Do you have experience with laser cutting?
• What is your online chat method, such as Skype, WhatsApp or WeChat
• Are you an end user or a dealer?
